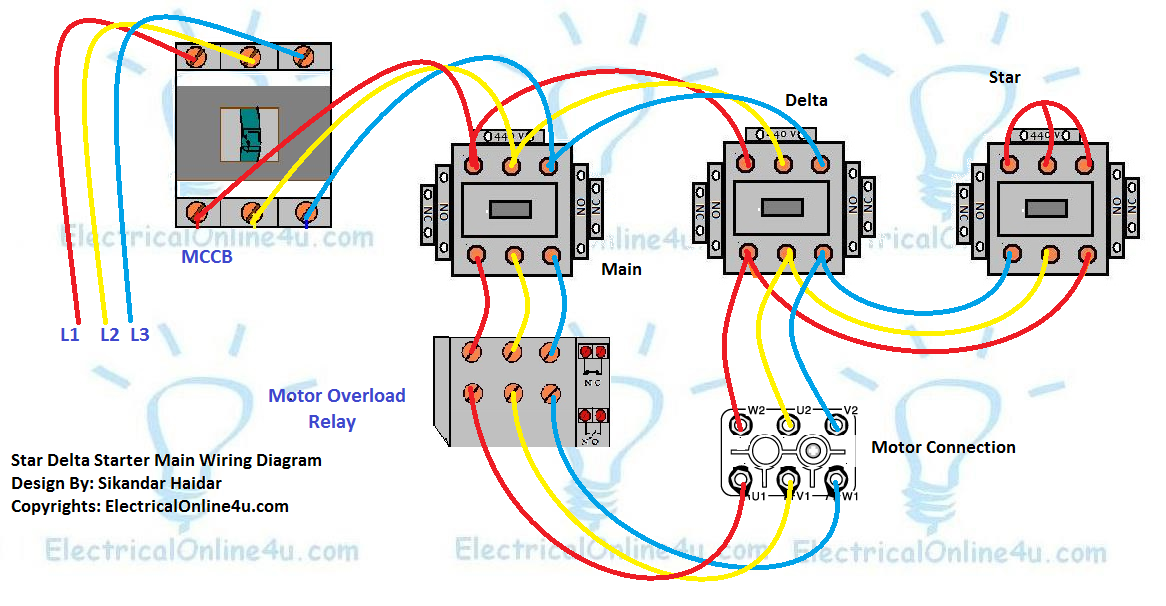

So this time i want share my simple star delta circuit diagram completed with power and control line circuiti hope it can be as basic reference for all electrician about star delta starter diagram. The main circuit breaker q1 connect or disconnect the main three phase supply l1 l2 and l3 to the motor terminal t1 t2 and t3.
. Diagram Star Delta Starter Control Wiring Diagram In Full Version Hd Quality Diagram In Basketballseatingdiagram Cisgabon Fr Star Delta Starter Motor Starting Method Power Control Wiring Madcomics Circuit Diagram Star Delta Starter Connection Diagram
Electrical Installation Basic Vocational Knowledge 7 Mounting And Connection Of Motors 7 4 Star Delta Start Of Three Phase Motors The most active post in electrical engineering centre blog is star delta starter and star delta motor connectioni received many comments and request for star delta circuit diagram.
. And when the motor start after some time its. Automatic star delta starter with timer for 3 phase ac motors. A dual starter connects the motor terminals directly to the power supplyhence the motor is subjected to the full voltage of the power supplyconsequently high starting current flows through the motor.
But high load 3 phase motor we use the star delta starter for motor control. Star delta starter wiring diagram this post is about the main wiring connection of three phase motor with star delta starter and control wiring diagram of star delta starter. A star delta starter is a type of motor starter which runs 3 phase motor in star in starting time.
Lets understand the star delta starter diagram. The main circuit breaker cb q1 serves as the main power supply switch that supplies electricity to the power circuit. Here the circuit diagram of star delta starter explained in detail.
In this tutorial we will show the star delta y d 3 phase induction ac motor starting method by automatic star delta starter with timer with schematic power control and wiring diagram as well as how star delta starter works and their applications with advantages and disadvantages. Star delta starter wiring diagram. This type of starting is suitable for small motors below 5 hp 375 kw.
For three phase motor we use the direct online starter but mostly for small three phase motor. The power circuit diagram and control circuit diagram of an automatic star delta starter are explained below. Fuses f1 f2 and f3 protects the motor against overload.
Star delta connection diagram and working principle. Here you will learn the connection of star delta starter with three phase motor.
